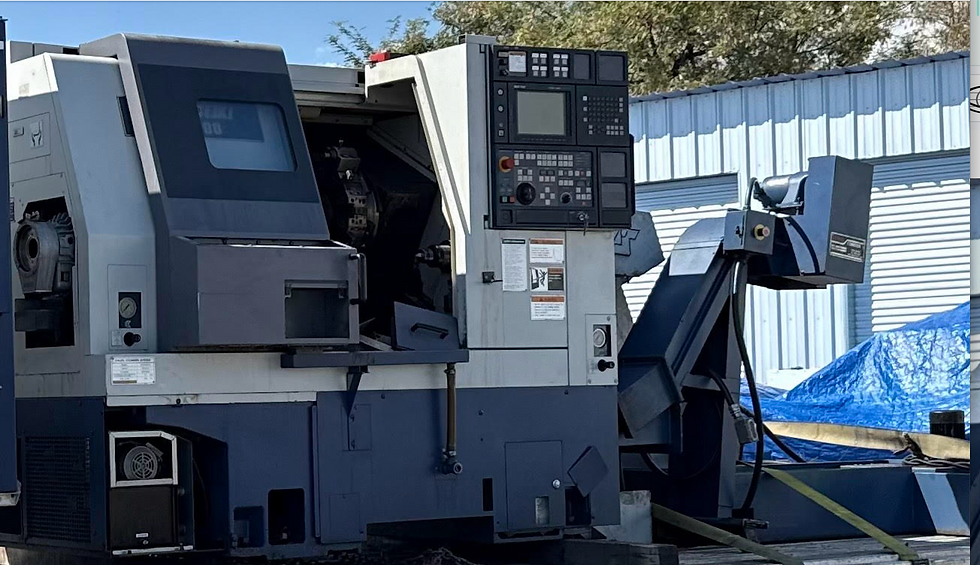

Used Mori Seiki SL-200/500 Machine
Year of manufacture: 2000
Condition
Very good
Operating hours
Not specified
Functionality:
Fully functional⸻
• Turning length
500 mm
• Turning diameter over cross slide
270 mm
• Turning diameter
270 mm
• Spindle motor power
11 kW
• Spindle speed (min.)
45 rpm
• Spindle speed (max.)
4,000 rpm
• Spindle bore
65 mm
• Travel distance X-axis
235 mm
• Travel distance Y-axis
Not applicable
• Travel distance Z-axis
520 mm
• Tool mount
12-position turret
• Rapid traverse X-axis
18 m/min
• Rapid traverse Y-axis
Not applicable
• Rapid traverse Z-axis
24 m/min
• Milling spindle length
Not applicable
• Rotational speed (max.)
4,000 rpm
• Rotational speed (min.)
45 rpm
• Rotational speed infinitely variable
Yes
• Type of input current
3-phase AC
• Feed length X-axis
235 mm
• Feed length Y-axis
Not applicable
• Feed length Z-axis
520 mm
• Torque
Not specified
• Bar passage
51 mm
• Workpiece weight (max.)
Not specified
• Feed rate X-axis
18 m/min
• Feed rate Y-axis
Not applicable
• Feed rate Z-axis
24 m/min
• Total height
1,800 mm
• Total length
2,300 mm
• Chuck outer diameter
203 mm (8 inches)
• Total width
1,727 mm
• Documentation/manual
Available
• Collet bore
65 mm
• Bar diameter
51 mm
• Quill stroke
Not applicable
• Quill diameter
Not applicable
• Quill travel distance
Not applicable
• Distance table center to spindle nose
Not specified
• Swing diameter over cross slide
270 mm
• Spindle nose
A2-6
• Swing diameter over bed slide
510 mm
• Overall weight
3,800 kg
• Swing diameter over top slide
Not specified
• Spindle diameter
Not specified
• Working range
500 mm
• Tool length
Not specified
• Center height over cross slide
Not specified
• Feed force X-axis
Not specified
• Feed force Y-axis
Not applicable
• Feed force Z-axis
Not specified
• Turning diameter over bed slide
510 mm
With accessories (Chip conveyor and coolant system)
*Please note that while these specifications are based on available data, there may be variations depending on the specific configuration of the machine.*
