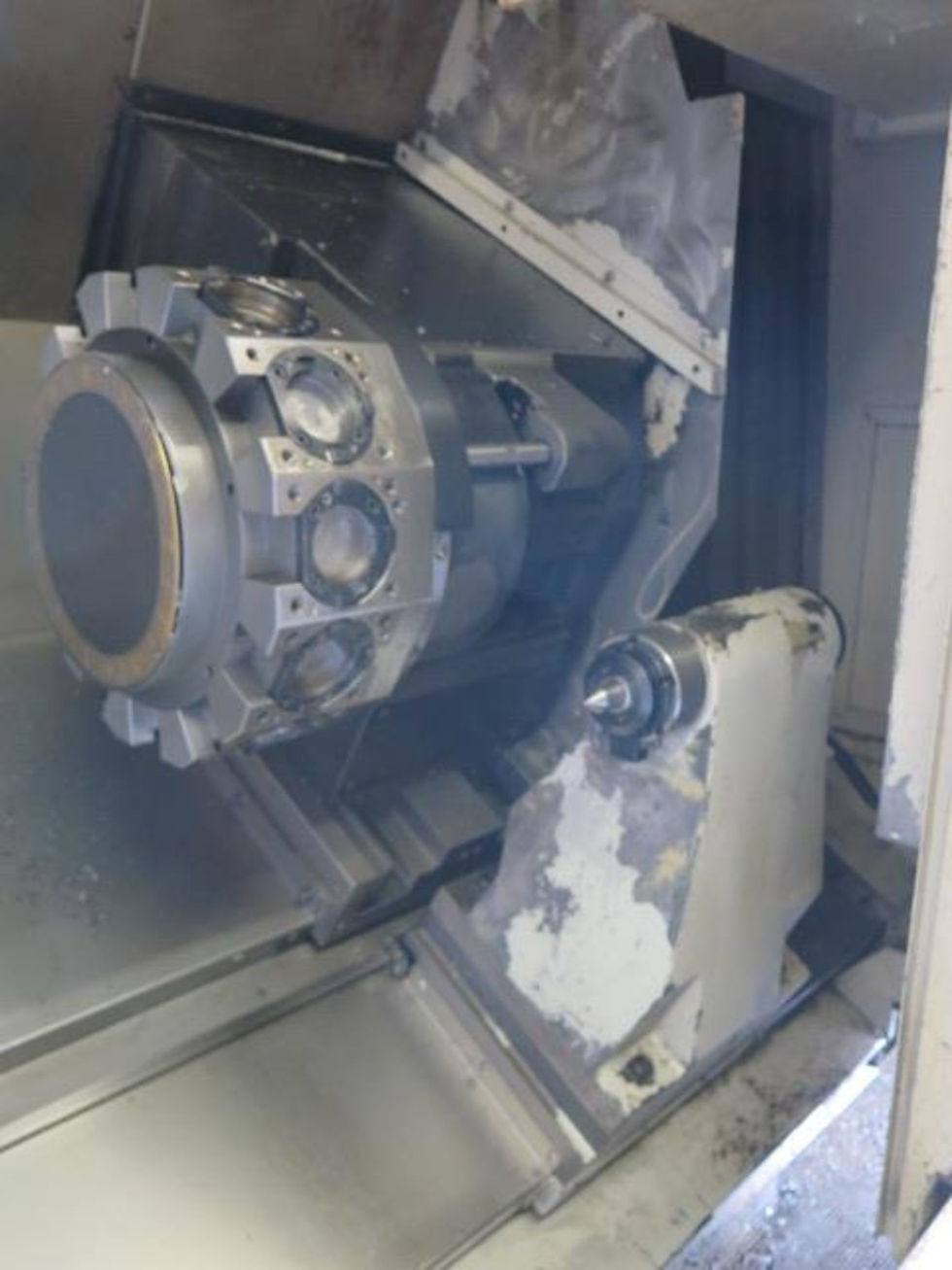

Mori Seiki NL2500/700 CNC Turning Center
Year: 2005

Condition: Very good
Functionality: Fully functional
--------------------------------------------


Turning length: 705 mm
Turning diameter over cross slide: 755 mm
Turning diameter: 356 mm
Spindle motor power: 18.5 / 15 kW
Spindle speed (max.): 4,000 rpm
Spindle bore: 91 mm
Travel distance X-axis: 260 mm
Travel distance Z-axis: 795 mm
Tool mount: 12-position turret
Rapid traverse X-axis: 30 m/min
Rapid traverse Z-axis: 30 m/min
Rotational speed (max.): 6,000 rpm
Feed length X-axis: 260 mm
Feed length Z-axis: 795 mm
Torque: Not specified
Bar passage: 80 mm
Feed rate X-axis: 30 m/min
Feed rate Z-axis: 30 m/min
Total height: 2,120 mm
Total length: 3,900 mm
Chuck outer diameter: 254 mm
Total width: 2,050 mm
Documentation/manual: Available
Bar diameter: 80 mm
Swing diameter over cross slide: 755 mm
Spindle nose: JIS A2-8
Swing diameter over bed slide: 923.8 mm
Overall weight: 5,800 kg
Turning diameter over bed slide: 923.8 mm

High-Precision, Heavy-Duty Performance – Ideal for Demanding Turning Applications

The Mori Seiki NL-2500/700 is a powerful and reliable CNC turning center, designed for high-performance machining with exceptional accuracy and stability. Known for its robust construction, precision components, and user-friendly Fanuc-based MSX control, this machine is an excellent choice for manufacturers seeking a versatile and productive lathe for medium- to large-sized workpieces.
